EXPLORE THE FEATURES

Aluswiss Asa L.L.C

Sliding doors effortlessly combine state-of-the-art performance with arresting aesthetics.
Our industry-leading and technically advanced solutions are perfect for a room with a view.

Hi-Finity
Hi-Finity

  • Ultimate design freedom, matching each project requirement
  • Floor-to-ceiling and wall-to-wall fully concealed profiles
  • Elegant lines and an unobstructed view

Max dimensions (HxW) – 4000 x 3500 mm

Water tightness – E750 (750 Pa)

Acoustic performance – Rw(C;Ctr) = 46 (-1;-3) dB

Burglar resistance – RC2/WK2

Thermal insulation (Uf) – 1.4 W/m²K

Wind load resistance – C5 (2000 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Passive

Hi-Finity Hi-Finity Sliding Window

The infinite view

Enjoy an infinite view with ultimate performances. The ultra-slim design of the Hi-Finity sliding system creates large transparent surfaces, with a light, sleek and elegant appearance.

This fully transparent and accessible sliding window seamlessly extends the house’s interior to the outside. Despite the minimal visual sidelines, the system’s high strength allows Hi-Finity to carry the weight of a large sliding glass pane up to 750 kilograms. Fixed panels up to 1200 kg.

This in combination with the thermal performance and the minimalistic look makes this product the best solution for low-energy contemporary architecture.

Properties

Min. Visible width T-profile – 35 mm
Visible width meeting section – 35 mm
Max. height vent – 4000 mm
Max. width vent – 3500 mm
Max. weight vent (element) – 1200 kg
Overall system depth frame – 148 mm
Overall system depth vent – 44 mm
Visible height vent – 8 mm
Visible height meeting section 4 doors – 67 mm
Min. Glass thickness – 36 mm
Max. Glass thickness – 54 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightnessE750 (750 Pa)
Wind load resistanceC5 (2000 Pa)
Acoustic performanceRw(C;Ctr) = 46 (-1;-3) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)1.4 W/m²K

SlimPatio 68
SlimPatio 68 sliding window

  • Panoramic view with 34mm sight-lines
  • Hi-Finity look and feel
  • Flush design, flat view and concealed frame

Max dimensions (HxW) – 2700 x 2700 mm

Water tightness – 8A (450 Pa)

Acoustic performance – Rw (C; Ctr) = 40 (-2;-4) dB

Burglar resistance – RC2/WK2

Thermal insulation (Uf) – 2.4 W/m²K

Wind load resistance – B5 (2000 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Super high

SlimPatio 68 SlimPatio 68 Sliding Window

Panoramic view and comfort

SlimPatio 68 is a high insulated sliding system with slim profiles and a concealed frame that combines comfort with elegance. Thanks to the ultra slim design, this sliding window allows for maximum natural light and provides an optimal panoramic view. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards.

The sliding system SlimPatio 68 offers you all design freedom to create contemporary living spaces,combining ultimate brightness with maximum comfort.

Properties

Visible width meeting section – 34 mm
Max. height vent – 2700 mm
Max. width vent – 2700 mm
Max. weight vent (element) – 250 kg
Overall system depth frame – 120 mm
Overall system depth vent – 64 mm
Rebate height – 18 mm
Visible height meeting section 4 doors – 74 mm
Min. Glass thickness – 24 mm
Max. Glass thickness – 36 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness8A (450 Pa)
Wind load resistanceB5 (2000 Pa)
Acoustic performanceRw (C; Ctr) = 40 (-2;-4) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)2.4 W/m²K

MasterPatio

  • Standard high-insulating system with high-rise ready performances.
  • Sustainable through recycled materials and reduced waste during production.
  • Compatible with our MasterLine 8 system, converting it into an easy to produce floor-to-ceiling facade.

Max dimensions (HxW) – 3600 x 3000 mm

Water tightness – E1200 (1200 Pa)

Acoustic performance – Rw= 44 dB

Thermal insulation (Uf) – 1.3 W/m²K

Wind load resistance – C5 (2000 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Passive

MasterPatio

With the introduction of MasterPatio, Reynaers remains the go-to supplier of high-performance sliding systems. It has been developed to combine comfort on every level, clean aesthetics down to the details, sustainable efforts, and unlimited design freedom. The Passive house level thermal performance and best in class water performance (up to 1500Pa) are combined with beautiful lines and details. Most components and accessories are concealed or flush integrated in the profiles, and dimensions and lines are kept clean and consistent across the visible profiles.

This system is a big step forward in our efforts to make systems more sustainable, with the introduction of recycled insulation bars, reduced waste during production, and will keep it’s sharp look for decades with minimal maintenance.

The built-in compatibility with our MasterLine 8 transforms MasterPatio from a sliding system to a complete floor-to-ceiling facade system, allowing you to build your home or high-rise apartment exactly as you want it to be.

Properties

Min. Visible width T-profile – 50 mm
Visible width meeting section – 50 mm
Max. height vent – 3600 mm
Max. width vent – 3000 mm
Max. weight vent (element) – 400 kg
Overall system depth frame – 180 mm
Overall system depth vent – 77 mm
Rebate height – 27 mm
Visible height vent – 87 mm
Visible height meeting section 4 doors – 181 mm
Min. Glass thickness – 16 mm
Max. Glass thickness – 62 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Fibreglass Reinforced Recycled Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightnessE1200 (1200 Pa)
Wind load resistanceC5 (2000 Pa)
Acoustic performanceRw= 44 dB
Energy
Thermal insulation (Uf)1.3 W/m²K

CP 155-LS
Concept Patio 155 (-Lift Slide)

  • A high end complete sliding door solution which makes the combination of high insulation and large dimensions possible
  • Based on the exquisite know how of Reynaers regarding sliding doors
  • Fabrication and logistical ease; minimal number of profiles, compatible with CS 77 and MasterLine 8

Max dimensions (HxW) – 3500 x 2700 mm

Water tightness – E900 (900 Pa)

Acoustic performance – Rw (C; Ctr) = 42 (-1;-3) dB

Burglar resistance – RC2/WK2

Thermal insulation (Uf) – 1.07 W/m²K

Wind load resistance – C4 (1600 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Super high

CP 155 (-LS) Concept Patio 155 (-Lift Slide)

Sophistication for quality and insulation

Concept Patio® 155 is a premium insulating slide and lift-slide system, designed to create maximal glass areas, combined with increased comfort. The system perfectly links up to the MasterLine 8 and 10 series.

The new CP 155 can be upgraded to High Insulation (HI) in order to achieve even better insulation values, which makes the system suitable for low energy buildings. A specific variant of CP 155 monorail has even achieved the Swiss Minergie® component label.

CP 155 is available with various opening possibilities and the low threshold option offers a solution to improve the buildings accessibility. Optional automatic opening solutions guarantee a maximum of comfort.
The lift-slide system allows the creation of glazed doors with extreme dimensions and weights up to 400 kg. It also offers an aesthetical minimalistic middle section. Additionally, CP 155 can comply with burglar resistance class 2, offering a safe and secure solution.

Properties

Min. Visible width T-profile – 76 mm
Visible width meeting section – 50 mm
Max. height vent – 3500 mm
Max. width vent – 2700 mm
Max. weight vent (element) – 400 kg
Overall system depth frame – 155 mm
Overall system depth vent – 68 mm
Rebate height – 25 mm
Visible height vent – 102 mm
Visible height meeting section 4 doors – 212 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 52 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightnessE900 (900 Pa)
Wind load resistanceC4 (1600 Pa)
Acoustic performanceRw (C; Ctr) = 42 (-1;-3) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)1.07 W/m²K

CP 130 (-LS)
Concept Patio 130 (-Lift Slide)

  • The complete sliding door solution hich offers a large choice in designs and functionalities
  • Based on the exquisite know how of Reynaers regarding sliding doors
  • Fabrication and logistical ease; minimal number of profiles, compatibel with CS 68

Max dimensions (HxW) – 2700 x 2700 mm

Water tightness – E750 (750 Pa)

Acoustic performance – Rw (C; Ctr) = 39 (-1;-3) dB

Burglar resistance – RC2/WK2

Thermal insulation (Uf) – 2.35 W/m²K

Wind load resistance – B5 (2000 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – High

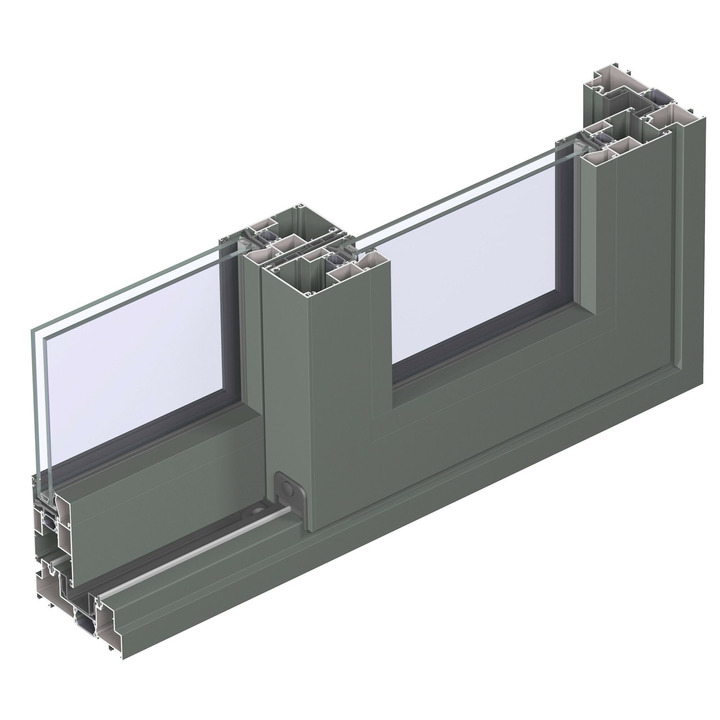

CP 130 (-LS) Concept Patio 130 (-Lift Slide)

Aesthetic functionality

Concept Patio® 130 is a highly insulated slide and lift-slide system, which meets the highest requirements with regard to insulation, stability and safety. The system perfectly links up to the CS 77 and MasterLine 8 series.

CP 130 is available with various opening possibilities and the low threshold option offers a solution to improve the buildings accessibility. A special corner solution makes it possible to open up spaces without any fixed corner element, creating a perfect and clear continuity between the indoor and outdoor spaces. This makes CP 130 ideal for rooms with a view.
This robust system allows the construction of large and stable sliding windows and doors with a vent weight up to 300 kg. It also offers an aesthetical slimline middle section. Additionally, CP 130 can comply with burglar resistance class 2, offering a safe and secure solution.

Properties

Min. Visible width T-profile – 76 mm
Visible width meeting section – 50 mm
Max. height vent – 2700 mm
Max. width vent – 2700 mm
Max. weight vent (element) – 300 kg
Overall system depth frame – 130 mm
Overall system depth vent – 59 mm
Rebate height – 25 mm
Visible height vent – 94 mm
Visible height meeting section 4 doors – 194 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 43 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightnessE750 (750 Pa)
Wind load resistanceB5 (2000 Pa)
Acoustic performanceRw (C; Ctr) = 39 (-1;-3) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)2.35 W/m²K

CP 68
Concept Patio 68

  • Performance and elegance; ultimate in light with maximum comfort and safety.
  • Large variety of configurations
  • Compatible with other Reynaers systems

Max dimensions (HxW) – 2500 x 1500 mm

Water tightness – 7B (300 Pa)

Acoustic performance – Rw (C; Ctr) = 38 (-2;-4) dB

Burglar resistance – RC2/WK2

Thermal insulation (Uf) – 2.5 W/m²K

Wind load resistance – C4 (1600 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Super high

CP 68 Concept Patio 68

Elegance, Comfort and Security

Concept Patio® 68 is a highly-insulated sliding system that combines elegance with performance and security. This unique sliding system is characterised by its slim profiles, allowing the integration of large windows and doors for maximum views, in combination with burglary resistance class RC2. The integrated innovative technologies guarantee ultimate performances with regard to wind and water tightness and thermal insulation, meeting with the highest standards. The sliding system CP 68 offers you all design freedom to create contemporary living spaces, combining ultimate brightness with maximum comfort and security.

Properties

Visible width meeting section – 34 mm
Max. height vent – 2500 mm
Max. width vent – 1500 mm
Max. weight vent (element) – 200 kg
Overall system depth frame – 68 mm
Overall system depth vent – 41.6 mm
Rebate height – 18 mm
Visible height T-profile – 55 mm
Min. Glass thickness – 24 mm
Max. Glass thickness – 36 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness7B (300 Pa)
Wind load resistanceC4 (1600 Pa)
Acoustic performanceRw (C; Ctr) = 38 (-2;-4) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)2.5 W/m²K

CF 77
Concept Folding 77

  • Standalone folding system
  • Large variety of configurations (from 2 to 8 vents)
  • Symmetrical design: In- and outward opening with same profiles & accessories

Max dimensions (HxW) – 3000 x 1200 mm

Water tightness – 9A (600 Pa)

Acoustic performance – Rw (C; Ctr) = 34 (-2;-5) / 45 (-1;-5) dB

Burglar resistance – RC2/WK2

Thermal insulation (Uf) – 2.25 W/m²K

Wind load resistance – C3 (1200 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Super high

CF 77 Concept Folding 77

Invite nature into your building

Concept Folding® 77 combines high insulation and comfort with maximal transparency and aesthetics. This folding door system optimizes your way of living by drawing the exterior into your home, with a minimum of space usage. This high performance system offers different opening types, both inward and outward, to meet all possible requirements. Apart from the standard folding elements, CF 77 can feature a main door principle, in which the first leaf is used as an entrance door without affecting the other folding leafs.

CF 77 is available in 4 different threshold solutions, from high performance to low and even flush thresholds, in order to perfectly match all comfort and aesthetic requirements. Additionally, the CF 77-concept can perfectly be combined with the CS systems for windows, doors and curtain walls.

Furthermore, CF 77 is available in Functional and Slim-Line style. This CF 77-SL variant features a slimmer visible profile width.

Properties

Max. height vent – 3000 mm
Max. width vent – 1200 mm
Overall system depth frame – 77 mm
Overall system depth vent – 77 mm
Rebate height – 25 mm
Min. Glass thickness – 6 mm
Max. Glass thickness – 63 mm
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness9A (600 Pa)
Wind load resistanceC3 (1200 Pa)
Acoustic performanceRw (C; Ctr) = 34 (-2;-5) / 45 (-1;-5) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)2.25 W/m²K

CF 68
Concept Folding 68

  • Wide range of configurations up to 8 vents
  • High AWW performance and burglar resistance class RC2 with 2 point locking gear to provide maximum comfort and security
  • Compatible with other Reynaers systems

Thermal insulation (Uf) – 1.8 W/m²K

Water tightness – 9A (600 Pa)

Acoustic performance – Rw (C; Ctr) = 35 (-1;-4) / 40 (-2;-4) dB

Burglar resistance – RC2/WK2

Wind load resistance – B3 (1200 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Super high

CF 68 Concept Folding 68

Endless enjoyment

Answering the needs of contemporary architecture, the Concept Folding® 68 system combines design, comfort and space efficiency. The wide range of possibilities to unfold numerous glass panes makes the borders between in- and exterior literally vanish.

The folding principle of this high quality system allows you to combine thermal comfort and transparency, with the choice to open to the inside or the outside of the building, whatever fits the specific need. The elements come in every colour and finish, if desired, offering a different colour for the interior and the exterior, all in order to perfectly match the building.

Properties

Max. height vent – 2500 mm
Rebate height – 14 mm
Min. Glass thickness – 12 mm
Max. Glass thickness – 55 mm
Thermal break – Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness9A (600 Pa)
Wind load resistanceB3 (1200 Pa)
Acoustic performanceRw (C; Ctr) = 35 (-1;-4) / 40 (-2;-4) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)1.8 W/m²K

CP 45Pa

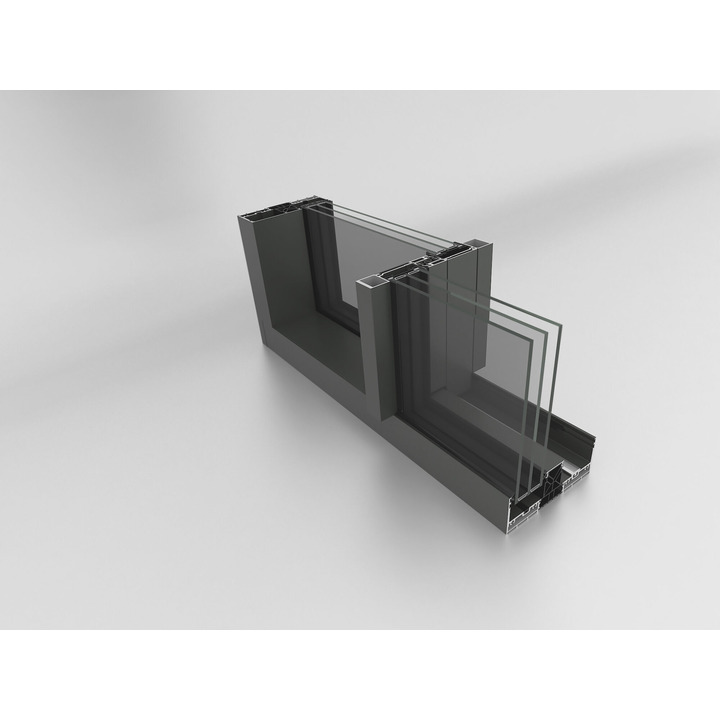

Concept Patio 45 Parallel

  • Functional and softline design
  • Choice between stainless steel or aluminium rail
  • Several new configurations like central sliding, build in sliding

Max dimensions (HxW) – 2300 x 1300 mm

Water tightness – 7B (300 Pa)

Acoustic performance – Rw (C; Ctr) = 30 (-1;-3) dB

Wind load resistance – C4 (1600 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Non insulated

CP 45Pa Concept Patio 45 Parallel

Less is more

Concept Patio® 45Pa is a non-insulated sliding system offering a wide range of solutions ideal for applications in warm climates, winter gardens or the partitioning of indoor office spaces. CP 45Pa applies the latest techniques, designed according to the highest European quality standards. This sliding system offers the complete range of opening possibilities, from sliding elements in the wall, over 2-, 3- to even 4-rail solutions.

With the minimalistic design, offered in Functional and Softline style, CP 45Pa realises an aesthetic solution for your building. In addition, the sliding elements can easily be integrated with different types of windows, conservatory systems, sun screenings and screen doors.

Properties

Min. Visible width T-profile – 70 mm
Visible width meeting section – 40 mm
Max. height vent – 2300 mm
Max. width vent – 1300 mm
Overall system depth vent – 29 mm
Rebate height – 20 mm
Min. Glass thickness – 6 mm
Max. Glass thickness – 24 mm

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness7B (300 Pa)
Wind load resistanceC4 (1600 Pa)
Acoustic performanceRw (C; Ctr) = 30 (-1;-3) dB
