EXPLORE THE FEATURES

Aluswiss doors are available in different energy levels, from non-insulated to super high insulating or suitable for passive construction.

MasterLine 8

MasterLine 8 doors

  • Excellent thermal performances
  • Highly competitive price-quality ratio
  • Wide field of applicatibily

Max dimensions (HxW) – 3000 x 1400 mm

Water tightness – 7A (300 Pa)

Min. Visible width frame-vent: inward opening – 153 mm

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Passive

Thermal insulation (Uf) – 153mm HI: 2,2; HI+: 1,4 (178,5mm HI+: 1,3) W/m²K

Wind load resistance – C3 (1200 Pa)

Acoustic performance – Rw (C; Ctr) = 43 (-1; -4) dB dB

Burglar resistance – RC2/WK2 – RC3/WK3

MasterLine 8  MasterLine 8 Doors

Crafted for masters

MasterLine 8 doors offer a wide range of highly insulated and robust flush doors, which meets the modern requirements with regard to safety, thermal insulation and stability, allowing the creation of large entrance doors. MasterLine doors are available as inward and outward opening glass or panel doors and pivoting doors are possible. All the doors can be fitted with a wide range of locks and hinges.

MasterLine doors are designed to meet the modern comfort requirements. The excellent air tightness and superb thermal performances are proven by the Passive Housing certificate that is included in the system.

With regard to safety and performance, the robust MasterLine doors can comply with burglar resistance class 3, large dimensions and weights up to 250kg and are proven to be extremely durable (class 8).

Properties

Min. Visible width frame: inward opening – 68.5 mm
Min. Visible width vent: inward opening – 78.5 mm
Min. Visible width frame-vent: inward opening – 153 mm
Min. Visible width frame: outward opening – 42.5 mm
Min. Visible width frame-vent: outward opening – 153 mm
Min. Visible width T-profile – 80 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Max. weight vent (element) – 250 kg
Overall system depth frame – 77 mm
Overall system depth vent – 77 mm
Rebate height – 27 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 58 mm
Min. Glass thickness vent – 4 mm
Max. Glass thickness vent – 58 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Omega Shaped Fibreglass

Performance

Comfort
Air tightness max. test pressure – 4 (600 Pa)
Water tightness – 7A (300 Pa)
Wind load resistance – C3 (1200 Pa)
Acoustic performance – Rw (C; Ctr) = 43 (-1; -4) dB dB
Safety
Burglar resistance – RC2/WK2  –  RC3/WK3
Energy
Thermal insulation (Uf) – 153mm HI: 2,2; HI+: 1,4 (178,5mm HI+: 1,3) W/m²K

CS 59Pa
Concept System 59 Parallel door

  • Well balanced price-quality-feature mix
  • Minimal build-in depth for insulated system
  • Reduced visible height for doors

Max dimensions (HxW) – 3000 x 1400 mm

Min. Visible width frame-vent: inward opening – 139 mm

Energy level – Non insulated

Wind load resistance – C

Air tightness max. test pressure – 4 (600 Pa)

CS 59Pa Concept System 59 Parallel Door

Ideal for warm climates

Concept System® 59 Parallel offers an extensive range of non-insulated profiles for the construction of elegant and moderately priced aluminium flush doors. CS 59Pa is the ideal system for applications in warm climates but it can also be used for the partitioning of indoor office spaces. For winter gardens, special combinations are possible with the Reynaers conservatory systems.

Properties

Min. Visible width frame: inward opening – 61.5 mm
Min. Visible width frame-vent: inward opening – 139 mm
Min. Visible width frame: outward opening – 36.5 mm
Min. Visible width frame-vent: outward opening – 139 mm
Min. Visible width T-profile – 74 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 35 mm

Performance

Comfort
Air tightness max. test pressure – 4 (600 Pa)
Wind load resistance – C

SlimLine 38
SlimLine 38 door

  • Well balanced price-quality-feature mix

Max dimensions (HxW) – 2500 x 1250 mm

Water tightness – 4A (150 Pa)

Min. Visible width frame-vent: inward opening – 101.5 mm

Air tightness max. test pressure – 3 (600 Pa)

Energy level – Super high

Thermal insulation (Uf) – 1,9 W/m²K

Wind load resistance – C3 (1200 Pa)

Acoustic performance – Rw(C;Ctr) = 38 (-1; -4) dB / 45 (-1; -5) dB

Burglar resistance – RC2/WK2

SlimLine 38 SlimLine 38 Door

Light, Elegance and Comfort

SlimLine 38 is a highly insulated system inward and outward opening windows and doors, which combines elegance and comfort, with a unique design. This special slender steel look is the perfect solution for modern architecture and renovation of steel-framed windows, respecting the original design but offering a thermally improved solution.

In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.

Properties

Min. Visible width frame: inward opening – 38.5 mm
Min. Visible width vent: inward opening – 43 mm
Min. Visible width frame-vent: inward opening – 101.5 mm
Min. Visible width frame: outward opening – 48 mm
Min. Visible width frame-vent: outward opening – 111 mm
Min. Visible width T-profile – 48 mm
Max. height vent – 2500 mm
Max. width vent – 1250 mm
Overall system depth frame – 99 mm
Overall system depth vent – 86 mm
Rebate height – 13.5 mm
Min. Glass thickness – 16 mm
Max. Glass thickness – 55 mm

Performance

Comfort
Air tightness max. test pressure3 (600 Pa)
Water tightness4A (150 Pa)
Wind load resistanceC3 (1200 Pa)
Acoustic performanceRw(C;Ctr) = 38 (-1; -4) dB / 45 (-1; -5) dB
Safety
Burglar resistanceRC2/WK2
Energy
Thermal insulation (Uf)1,9 W/m²K

ES 45Pa
Eco System 45 ‘Parallel’ door

Max dimensions (HxW) – 2400 x 1400 mm

Water tightness – 7A (300 Pa)

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Non insulated

Min. Visible width frame-vent: inward opening – 115mm

ES 45Pa Eco System 45 ‘Parallel’ Door

A new dimension of affordable quality

Eco System® 45Pa is a non-insulated door system for inward and outward opening window doors, designed according to the highest European quality standards. This simple, yet highly innovative design offers a very cost-efficient solution thanks to its optimised fabrication process. As with all Reynaers systems, a 10-year guarantee is offered.

ES 45Pa can realise all types of inward and outward opening, single and double window doors. The numerous combinations of elements and the perfect match with the ES 45Pa window system, makes ES 45Pa extremely suitable for all types of building concepts.

Properties

Min. Visible width frame: inward opening – 47 mm
Min. Visible width vent: inward opening – 61 mm
Min. Visible width frame-vent: inward opening – 115 mm
Min. Visible width frame: outward opening – 20 mm
Min. Visible width frame-vent: outward opening – 113 mm
Min. Visible width T-profile – 69 mm
Max. height vent – 2400 mm
Max. width vent – 1400 mm
Overall system depth frame – 45 mm
Overall system depth vent – 54 mm
Rebate height – 22 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 40 mm

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness7A (300 Pa)
Wind load resistanceC2 (800 Pa)

MasterLine 10
Rebate doors

  • Best value for money amongst passive systems
  • Design variants Renaissance and Deco available

Max dimensions (HxW) – 3000 x 1400 mm

Water tightness – 9A (600 Pa)

Min. Visible width frame-vent: inward opening – 134 mm

Air tightness max. test pressure – 4 (600 Pa)

Energy level – Passive

Thermal insulation (Uf) – 0,79 W/m²K

Wind load resistance – C3 (1200 Pa)

MasterLine 10 Rebate Doors

No compromise

MasterLine 10 doors have been designed for low-energy and passive buildings without a compromise on design, daylight access or even safety. MasterLine 10 doors are available in 2 different compositions, as rebate doors or as flush doors. The rebate doors feature design variants such as Renaissance or Deco and can be used as Balcony Doors as well. Flush Doors are designed to be used in public buildings where there is a bigger demand for durable, robust doors.

Both solutions feature the best water performances, draft reduction and thermal properties with patented technology, such as the improved thermal break and drainage concept.

Properties

Min. Visible width frame: inward opening – 60 mm
Min. Visible width vent: inward opening – 67 mm
Min. Visible width frame-vent: inward opening – 134 mm
Min. Visible width frame: outward opening – 27 mm
Min. Visible width frame-vent: outward opening – 145 mm
Min. Visible width T-profile – 87 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Max. weight vent (element) – 130 kg
Overall system depth frame – 97 mm
Overall system depth vent – 107 mm
Rebate height – 27 mm
Min. Glass thickness – 20 mm
Max. Glass thickness – 78 mm
Glazing method – Dry glazing with EPDM or neutral silicones

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness9A (600 Pa)
Wind load resistanceC3 (1200 Pa)
Energy
Thermal insulation (Uf)0,79 W/m²K

CS 77
Concept System 77 door

Max dimensions (HxW) – 3000 x 1400 mm

Water tightness – 7A (300 Pa)

Min. Visible width frame-vent: inward opening – 150 mm

Air tightness max. test pressure – 4 (600 Pa)

Energy level – High

Thermal insulation (Uf) – 150mm: 2,1 W/m²K

Wind load resistance – C2 (800 Pa)

Acoustic performance – Rw (C; Ctr) = 42 (-1; -4) dB

Burglar resistance – RC2/WK2 – RC3/WK3

CS 77 Concept System 77 Door

Optimised safety and comfort

Concept System® 77 includes a high-quality flush door system, which meets the elevated requirements regarding thermal insulation, stability and security.
With regard to security, different door variants are specially designed and tested for burglar resistance, fire resistance, bullet proof and solutions for panic situations, meeting the most severe European standards.

This standard flush door range is available in all inward and outward opening types, realised with a wide range of door locks to meet every kind of locking demand.
Moreover, CS 77 flush doors are offered with different threshold solutions to perfectly match all comfort and aesthetic requirements. To ensure the tightness of the door, specially designed insulation strips are used to avoid possible bending of the element, caused by temperature difference between the in- and outside of the building.

Properties

Min. Visible width frame: inward opening – 68 mm
Min. Visible width vent: inward opening – 76 mm
Min. Visible width frame-vent: inward opening – 150 mm
Min. Visible width frame: outward opening – 42 mm
Min. Visible width frame-vent: outward opening – 150 mm
Min. Visible width T-profile – 76 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Max. weight vent (element) – 250 kg
Overall system depth frame – 68 mm
Overall system depth vent – 68 mm
Rebate height – 25 mm
Min. Glass thickness – 4 mm
Max. Glass thickness52 mm
Min. Glass thickness vent – 4 mm
Max. Glass thickness vent – 52 mm

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness7A (300 Pa)
Wind load resistanceC2 (800 Pa)
Acoustic performanceRw (C; Ctr) = 42 (-1; -4) dB
Safety
Burglar resistanceRC2/WK2 – -RC3/WK3
Energy
Thermal insulation (Uf)150mm: 2,1 W/m²K

CS 68

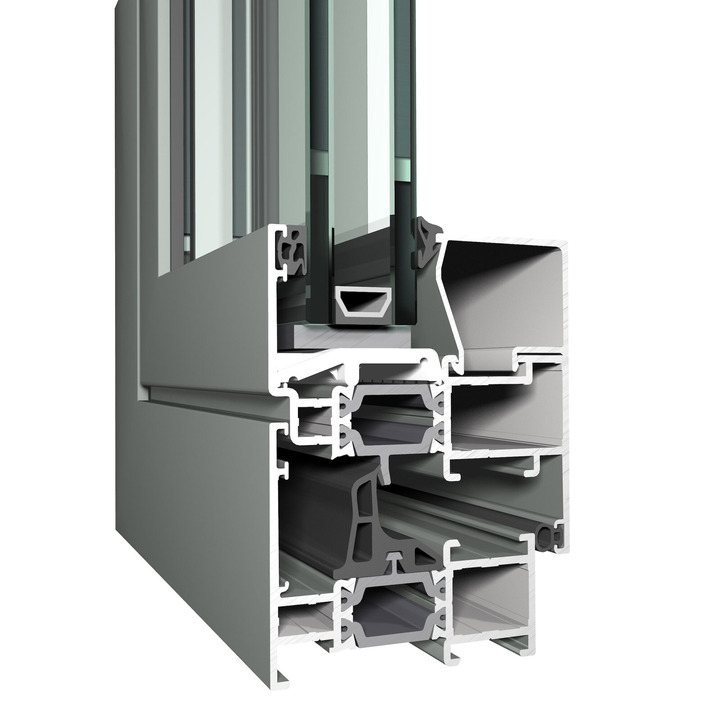

Concept System 68 door

  • Well balanced price-quality-feature mix
  • Minimal build-in depth for doors
  • Reduced visible height for fixed windows and opening windows

Max dimensions (HxW) – 3000 x 1400 mm

Water tightness – 4A (150 Pa)

Min. Visible width frame-vent: inward opening – 150 mm

Air tightness max. test pressure – 4 (600 Pa)

Energy level – High

Wind load resistance – C4 (1600 Pa)

Acoustic performance – Rw (C; Ctr) = 37 (-1; -4) / 44 (-2; -5) dB

Burglar resistance – RC2/WK2 – RC3/WK3

CS 68 Concept System 68 Door

Universal solution

Concept System® 68 includes a quality flush door system, with high stability, thermal insulation and increased security. This flush door range is available in all types of inward and outward opening types, realised with a wide range of door locks to meet every kind of locking demand.

Moreover, CS 68 flush doors are offered with different threshold solutions to perfectly match all comfort and aesthetic requirements. To ensure the tightness of the door, specially designed insulation strips are used to avoid any distortion of the element, due to temperature difference between inside and outside.
With regard to security, CS 68 door can comply with burglar resistance class 2. CS 68 variants are available to provide fire resistance and solutions in case of panic situations.

Properties

Min. Visible width frame: inward opening – 68 mm
Min. Visible width vent: inward opening – 76 mm
Min. Visible width frame-vent: inward opening – 150 mm
Min. Visible width frame: outward opening – 42 mm
Min. Visible width frame-vent: outward opening – 150 mm
Min. Visible width T-profile – 76 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Overall system depth frame – 59 mm
Overall system depth vent – 59 mm
Rebate height – 25 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 43 mm
Glazing method – Dry glazing with EPDM or neutral silicones
Thermal break – Omega Shaped Fibreglass

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness4A (150 Pa)
Wind load resistanceC4 (1600 Pa)
Acoustic performanceRw (C; Ctr) = 37 (-1; -4) / 44 (-2; -5) dB
Safety
Burglar resistanceRC2/WK2 – -RC3/WK3

ES 50

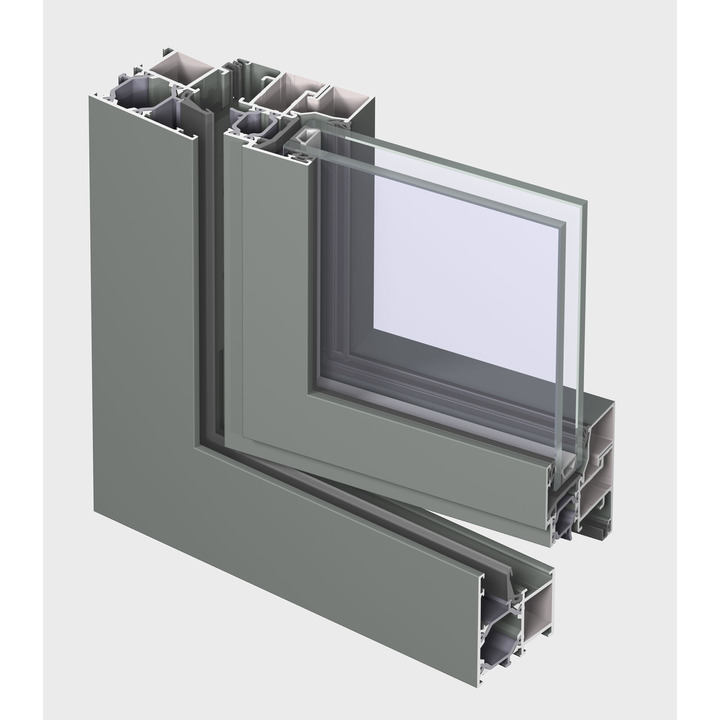

Eco System 50 door

  • Well balanced price-quality-feature mix
  • Minimal build-in depth for doors
  • Reduced visible height for fixed windows and opening windows

Max dimensions (HxW) – 3000 x 1400 mm

Water tightness – 4A (150 Pa)

Min. Visible width frame-vent: inward opening – 146 mm

Air tightness max. test pressure – 4 (600 Pa)

Energy level – High

Thermal insulation (Uf) – 3,2 W/m²K

Wind load resistance – C2 (800 Pa)

Acoustic performance – Rw (C; Ctr) = 40 (-2; -4) dB

ES 50 Eco System 50 Door

Simply smart

Eco System® 50 includes a well-insulated flush door system that combines aesthetic design, energy efficiency with a moderate price. All types of inward and outward opening doors and flush doors can be realised with ES, perfectly matching the ES window system. In addition, ES doors can comply with burglar resistance class 2, offering a safe and secure solution both for residential constructions and utility buildings.

Properties

Min. Visible width frame: inward opening – 67 mm
Min. Visible width vent: inward opening – 74 mm
Min. Visible width frame-vent: inward opening – 146 mm
Min. Visible width frame: outward opening – 42 mm
Min. Visible width frame-vent: outward opening – 146 mm
Min. Visible width T-profile – 70 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Overall system depth frame – 50 mm
Overall system depth vent – 50 mm
Rebate height – 22 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 32 mm

Performance

Comfort
Air tightness max. test pressure4 (600 Pa)
Water tightness4A (150 Pa)
Wind load resistanceC2 (800 Pa)
Acoustic performanceRw (C; Ctr) = 40 (-2; -4) dB
Energy
Thermal insulation (Uf)3,2 W/m²K

CS 59
Concept System 59 door

  • Well balanced price-quality-feature mix
  • Minimal build-in depth for doors
  • Reduced visible height for fixed windows and opening windows

Max dimensions (HxW) – 3000 x 1400 mm

Water tightness – 4A (150 Pa)

Min. Visible width frame-vent: inward opening – 149 mm

Air tightness max. test pressure – 2 (300 Pa)

Energy level – Medium

Wind load resistance – C

Acoustic performance – Rw (C; Ctr) = 40 (-2; -4) dB

CS 59 Concept System 59 Door

Concept for insulation

Concept System® 59 offers an extensive range of insulated profiles for the construction of elegant and moderately priced aluminium flush doors. The system is available in a variety of threshold solutions to perfectly match all comfort and aesthetic requirements.

The system’s limited built-in depth allows its application in many constructions, even with reduced wall thicknesses.

The CS 59 system includes all types of inward and outward opening, single and double flush doors. The range of combinations available allow the system to respond to the needs of the building. The door system perfectly matches the CS 59 window system. The large choice of colours allows a perfect match with the building style.

Properties

Min. Visible width frame: inward opening – 67 mm
Min. Visible width vent: inward opening – 74 mm
Min. Visible width frame-vent: inward opening – 149 mm
Min. Visible width frame: outward opening – 42 mm
Min. Visible width frame-vent: outward opening – 149 mm
Min. Visible width T-profile – 76 mm
Max. height vent – 3000 mm
Max. width vent – 1400 mm
Overall system depth frame – 50 mm
Overall system depth vent – 50 mm
Rebate height – 25 mm
Min. Glass thickness – 4 mm
Max. Glass thickness – 32 mm

Performance

Comfort
Air tightness max. test pressure2 (300 Pa)
Water tightness4A (150 Pa)
Wind load resistanceC
Acoustic performanceRw (C; Ctr) = 40 (-2; -4) dB

+450

shades and finishes

RAL

colour selection

tabs-image-ral

Coatex

Matt

Metallic

Satin

Gloss
